Allwinner V536
by zuiki_admin in

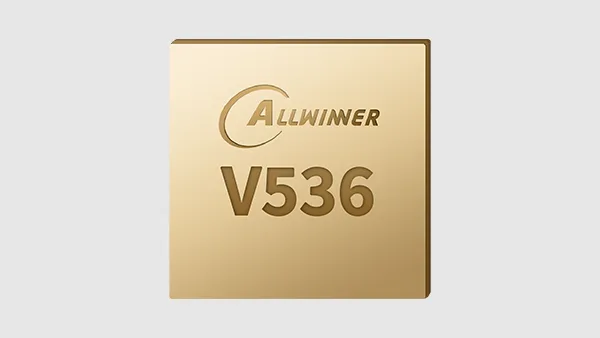

Allwinner V536
製品特徴
- Dual-Core ARM Cortex A7 を採用
- カメラ入力を搭載 ISP 12M@30fps
- ハードウェアビデオエンコーダーとデコーダーを搭載 up to 4K@30fps + VGA30fps
- Camera向けソリューション（4K + FHD or QHD + QHD ／ QHD + 2*FHD ）
- High performance and Low-power 4K Ultra HD SoC
機能ブロック
製品仕様
| CPU | Dual-core ARM CortexTM-A7 Processor |
|---|---|
| GPU | ─ Not Included ─ |
| Memory | Supports DDR4/DDR3/DDR3L/LPDDR4/LPDDR3 Supports clock frequency up to 800MHz Supports eMMC, NAND, SPI Nor Flash / SPI NAND flash, SD card |
| Video Decoder | Supports H.265/H.264 3840×2160@30fps Supports H.265 MP Supports H.264 BP/MP/HP Supports MJPEG/JPEG MP |
| Video Encoder | Supports H.265/H.264 3840×2160@30fps Supports H.265 MP Supports H.264 BP/MP/HP Supports H.265/H.264 I/P Frame, Dual-P Frame Supports MJPEG/JPEG baseline |
| Display Output | Supports DE Supports 4 layers (2 video layers, 2 UI layers) overlay,video layer up to 4K, UI layer up to 1080P PAL/NTSC, supporting automatic load detection HDMI 1.4 up to 4K30fps MIPI DSI up to 1080P60fps RGB888/666/565 display output BT.656/BT1120 video output |
| Image In | Supports 8/10/12/16 DC interface Supports BT656,BT601,BT1120 interface Supports ITU-R BT.656/BT1120 time-multiplexed format Supports MIPI, sub-LVDS, HiSPI interface timings Supports DDR sample mode Supports image crop function Maximum 1080p@30fps resolution for DVP/BT656 interface Maximum 1080p@60fps/4K@15fps resolution for BT1120 interface(Only for V536) Maximum pixel clock for parallel to 148.5MHz |
| Audio | I2S/PCM OWA IN/OUT DMIC DMA |
| Security System | Crypto Engine SID(2Kbits) Security Boot |
| External peripheral | USB2.0 OTG UART x6 SPI x4 TWI x6 CIR Receiver One Wire SDIO 3.0 EMAC RMII/RGMII |
| Package | TFBGA 412 balls, 14 x 14 mm, 0.5 mm ball pitch |
